LOCTITE® 222

Features and Benefits

Available sizes:

Bottle

10.0/case

Bottle

10.0/case

Bottle

10.0/case
TDS Download
Low-strength threadlocker for the locking and sealing of small fasteners under 6.35 mm (1/4") in diameter. Prevents loosening due to shock and vibration, removable with hand tools.
If you're working with small diameter screws made of low-strength metals (e.g. aluminium or brass), try LOCTITE® 222. Ideal for low-strength threadlocking of adjustment screws, countersunk head screws and set screws.
  • Ideal for low-strength threadlocking of adjustment screws, countersunk head screws and set screws
  • Prevents fastener loosening on vibrating assemblies, e.g. pumps, gearboxes, presses
  • Ideal for small thread sizes up to 6.35 mm (1/4")
  • Can be disassembled with ordinary hand tools for easy service and maintenance
Read More

Documents and Downloads

Technical Data Sheet
LOCTITE® 222
Download TDS
Safety Data Sheets and RoHs
  • Bottle 10.0/case - IDH 1496888
  • Bottle 10.0/case - IDH 231499
  • Bottle 10.0/case - IDH 471660
LOCTITE® 222, 250 ml Bottle 1496888 en-AU
IDH: 1496888
EAN: 9310743008531

Size Case: Bottle

Quantity: 10.0/case

Download SDS

Download RoHs

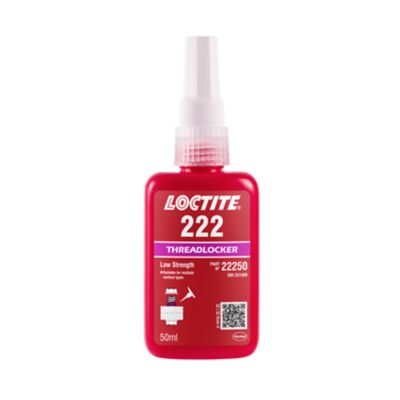

LOCTITE® 222, 50 ml Bottle 231499 en-AU
IDH: 231499
EAN: 079340222502

Size Case: Bottle

Quantity: 10.0/case

Download SDS

Download RoHs

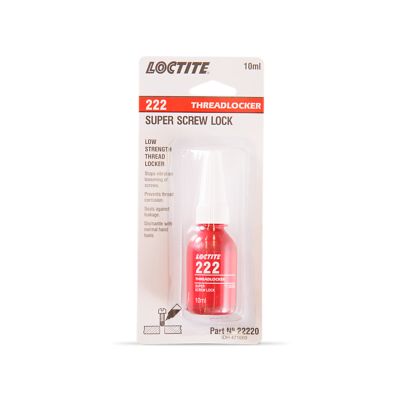

LOCTITE® 222, 10 ml Bottle 471660 en-AU
IDH: 471660
EAN: 9310743001174

Size Case: Bottle

Quantity: 10.0/case

Download SDS

Download RoHs
No documents found

Looking for a TDS or SDS in another language?

Search for TDS in another language
Search for SDS in another language

Technical Information

Agency approvals / certificates / specifications, Regional approval for Europe only NSF P1 Reg. No 123002
Application method Dispense system, Manual
Application temperature -55.0 - 150.0 °C (-65.0 - 300.0 °F )
Applications Threadlocking
Breakaway torque, M10 Steel Nuts/Bolts 6.0 N·m (50.0 in./lb. )
Colour Purple
Cure type Anaerobic cure
Fixture time 20.0 min.
Key characteristics Disassembly: removable, Fluorescent, General purpose, Mix: no mix required, Strength: low Strength, Thixotropic
Physical form Liquid
Prevail torque, M10 Steel Nuts/Bolts 4.0 N·m (35.0 in./lb. )
Recommended for use with Metal, Metal: passive metal
Viscosity, Speed 20 RPM 1200.0 mPa·s (cP)

How to

Step by Step Guide

1. Preparation - Cleaning

It is recommended to use LOCTITE® SF 7063/7064 to degrease and clean surfaces prior to applying adhesive.

2. Preparation - Activation

If cure speed is too slow due to passive metals (stainless steel, aluminium and plated metals) or low temperature (below 5°C), use activator LOCTITE® SF 7649 (see cure speed vs activator graph in the TDS).

3. Application

Apply liquid threadlocker to the engagement area.

4. Application - Through Hole

Insert bolt and apply threadlocker to the exposed thread. Assemble nut and tighten to the correct/specified torque.

5. Application - Blind Hole

Apply into lower third of blind hole.

6. Assembly

Assemble and tighten. If several bolts are being assembled, torque them down to the correct value within the fixture.

7. Disassembly

Disassemble with standard hand tools.

Hint

For the disassembly of corroded or seized parts use LOCTITE® LB 8040 Freeze and Release.
